Modelling Floating Leaf Discs¶
A Trip Back In Time¶
I was originally a molecular biology student in undergrad and in my second year I took a course on plant biology. We had many labs but in one we were to poke holes out of leaves, drop them in a beaker of water, and shine grow lights on them until they floated to the surface. My lab partner and I took measurements every minute to get the following data:
time = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20]
b1 = [0, 0, 0, 0, 0, 0, 1, 2, 2, 3, 3, 4, 4, 7, 9, 9, 9, 10, 10, 10, 10]
b2 = [0, 0, 0, 0, 0, 0, 1, 1, 1, 2, 2, 2, 2, 3, 3, 6, 9, 9, 10, 10, 10]
b3 = [0, 0, 0, 0, 0, 0, 0, 2, 3, 3, 3, 4, 6, 6, 7, 8, 9, 9, 10, 10, 10]

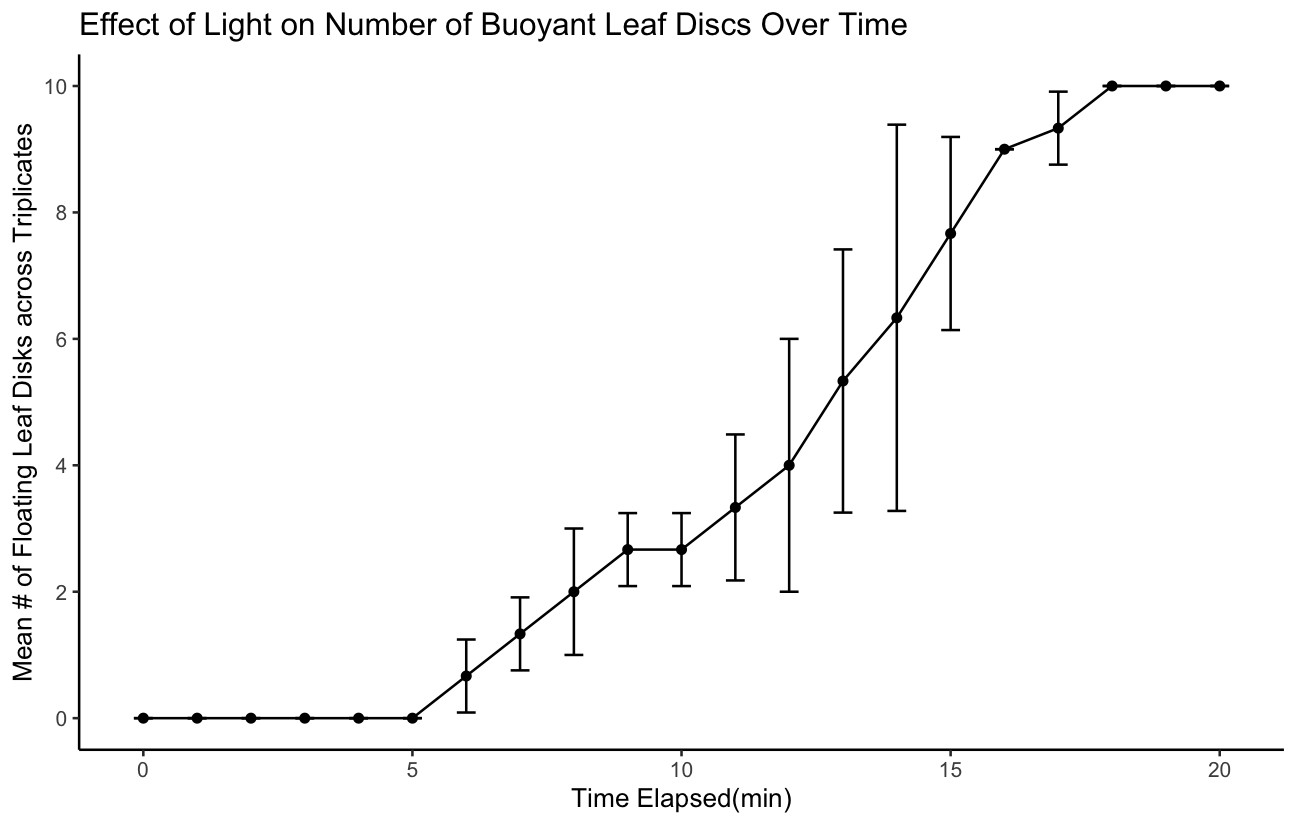

The goal of the assignment was just to create the following kind of plot:
However I felt this throws away a lot of information! At this point I was interested in Bayesian inference, so I iterated
My First Attempt¶
At first I thought to treat all observations as independent and fit a simple Binomial generalized linear model:
\[
\begin{aligned}
C_i &\sim \text{Binomial}(10, p_i) \\
\text{logit}(p_i) &= \alpha + \beta \cdot t_i
\end{aligned}
\]
Where \(C_i\) denotes the # of leaf discs floating at time \(t_i\) for some arbitrary beaker.
Then \(\alpha\) and \(\beta\) could be thought parameters relating (through some very convoluted mapping) to the actual rate of photosynthesis, the average weight of a disc in an average beaker, etc.
Here is the exact Stan model I initially fit:
data {
int<lower=0> Nobs;
int<lower=0> Nrep;
array[Nobs, Nrep + 1] int<lower=0> mat; // First column is time, other columns are beakers
}
parameters {
real alpha;
real beta;
}
model {
real time;
// Priors
alpha ~ normal(0, 100);
beta ~ normal(0, 100);
// Likelihood Loop
for (i in 1:Nrep) { // Replicates
for (j in 1:Nobs) { // Observations
time = mat[j, 1] * 1.0;
// Likelihood
mat[j, i + 1] ~ binomial_logit(10, alpha + beta * time );
}
}
}
Storing all the data in a single array is not my best work but I was in second year so I give myself some grace.

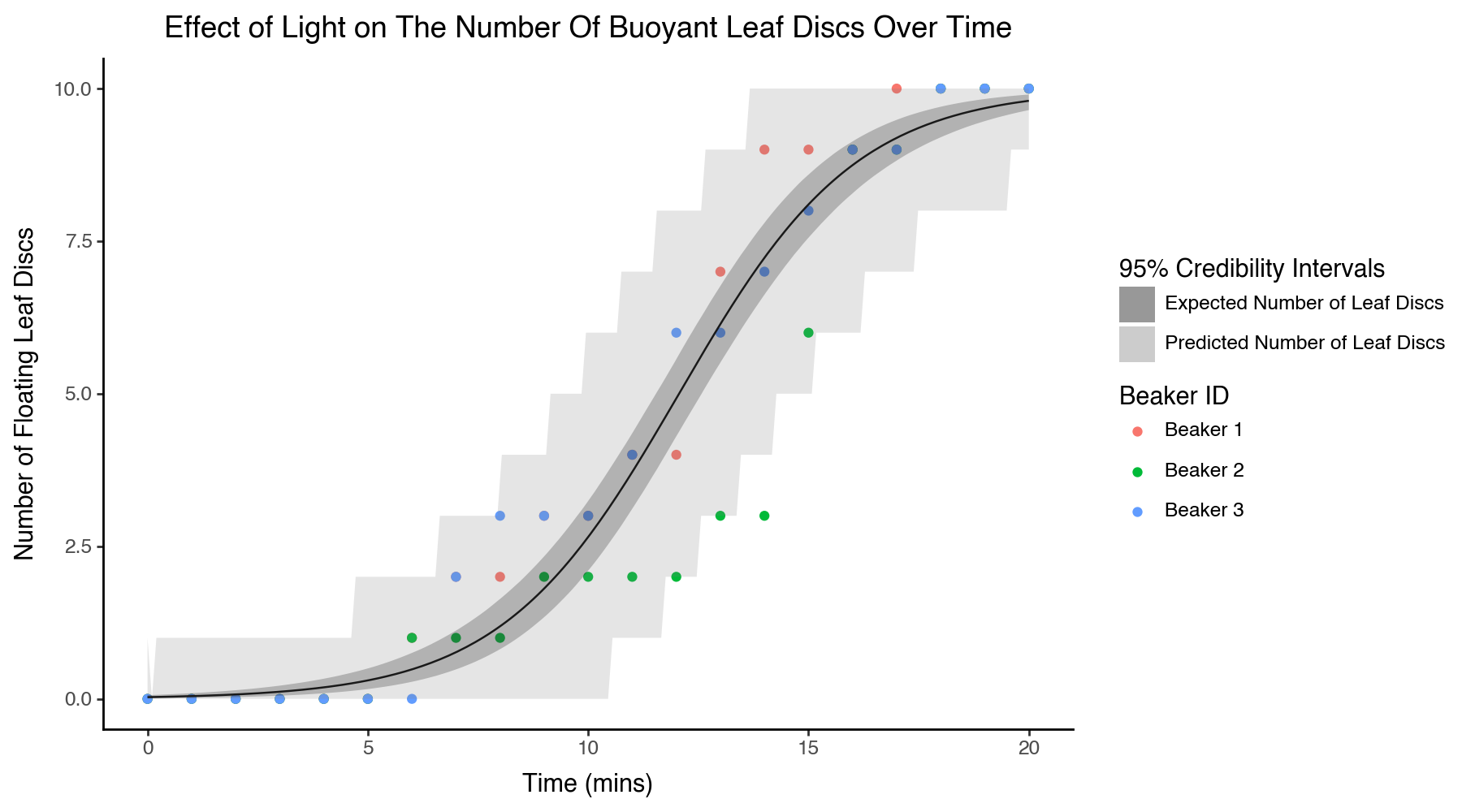

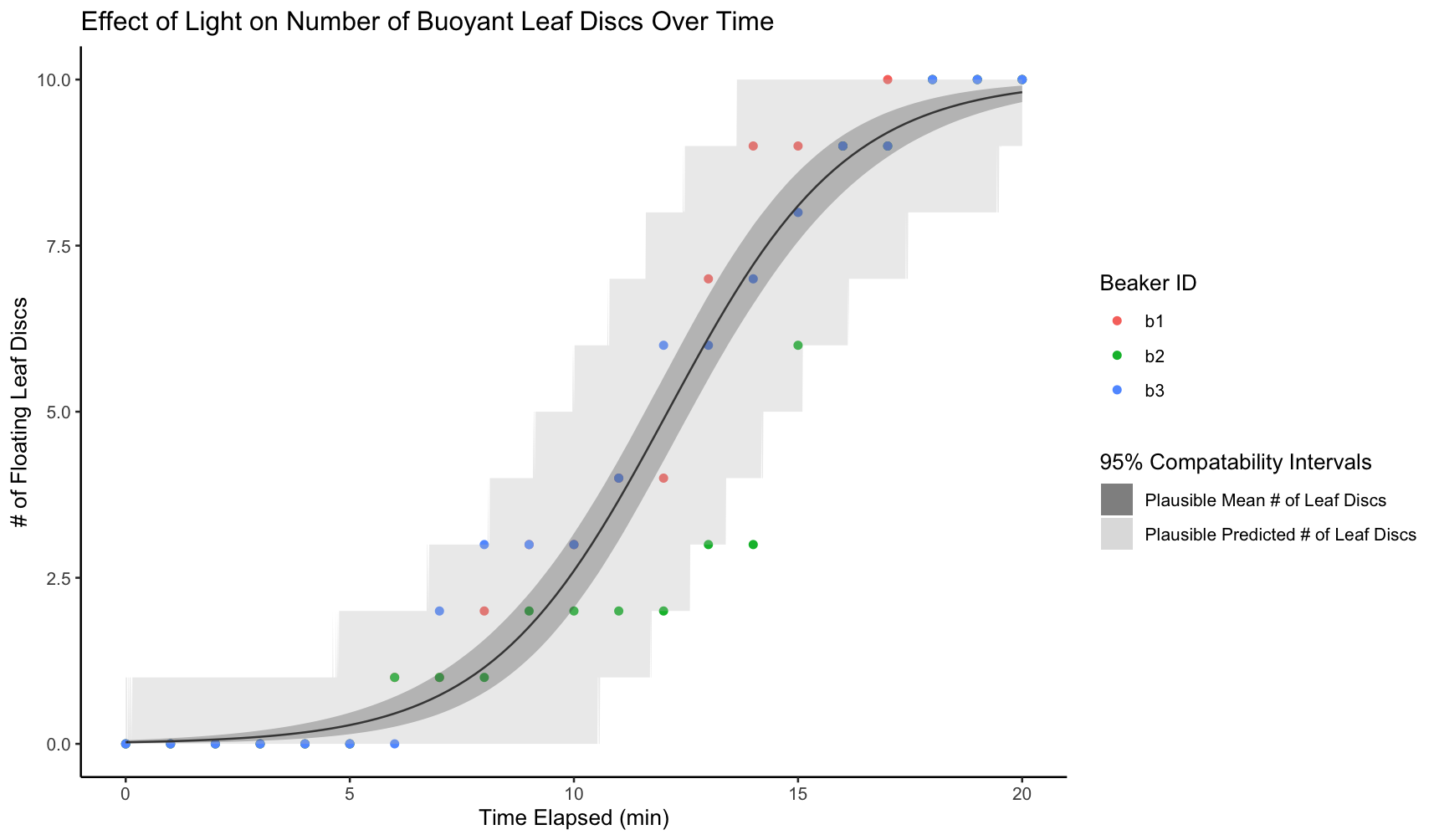

Which produced the following results:
If you've read Richard McElreath's Statistical Rethinking then you may be able to tell that I too had just read Richard McElreath's Statistical Rethinking.
However, it's clear that 1) observations from the same beaker are not independent and 2) even observations within the same beaker are not independent as the number of floating discs at a previous timepoint tells us something about the number of floating discs at a later one (the discs cannot somehow sink again, so the values are monotonically increasing).
My Second Attempt¶
I did eventually understand point 1) and extended my original model to include a "random-effect" on the beaker ID:
\[
\begin{aligned}
C_{b,i} &\sim \text{Binomial}(10, p_{b,i}) \\
\text{logit}(p_{b,i}) &= \alpha_b + \beta_b \cdot t_i \\
\alpha_b &\sim \text{Normal}(\mu, \sigma) \\
\beta_b &\sim \text{Normal}(\nu, \tau) \\
\end{aligned}
\]
Where \(C_{b,i}\) denotes the # of leaf discs floating at time \(t_i\) in beaker \(b\).
data {
int<lower=0> Nobs;
int<lower=0> Nrep;
array[Nobs, Nrep + 1] int<lower=0> counts; // First column is time, other columns are beakers
}
parameters {
real alphaP;
real betaP;
real<lower=0> Adisp;
real<lower=0> Bdisp;
vector[Nrep] alphaI;
vector[Nrep] betaI;
}
model {
real time;
// Hyperpriors
alphaP ~ normal(0, 100);
betaP ~ normal(0, 100);
Adisp ~ exponential(1);
Bdisp ~ exponential(1);
// Priors
alphaI ~ normal(alphaP, Adisp);
betaI ~ normal(Bdisp, Bdisp);
for (i in 1:3) { // Replicates
for (j in 1:Nobs) { // Observations
time = mat[j, 1] * 1.0;
// Likelihood
counts[j,i + 1] ~ binomial_logit(10, alphaI[i] + betaI[i] * time );
}
}
}

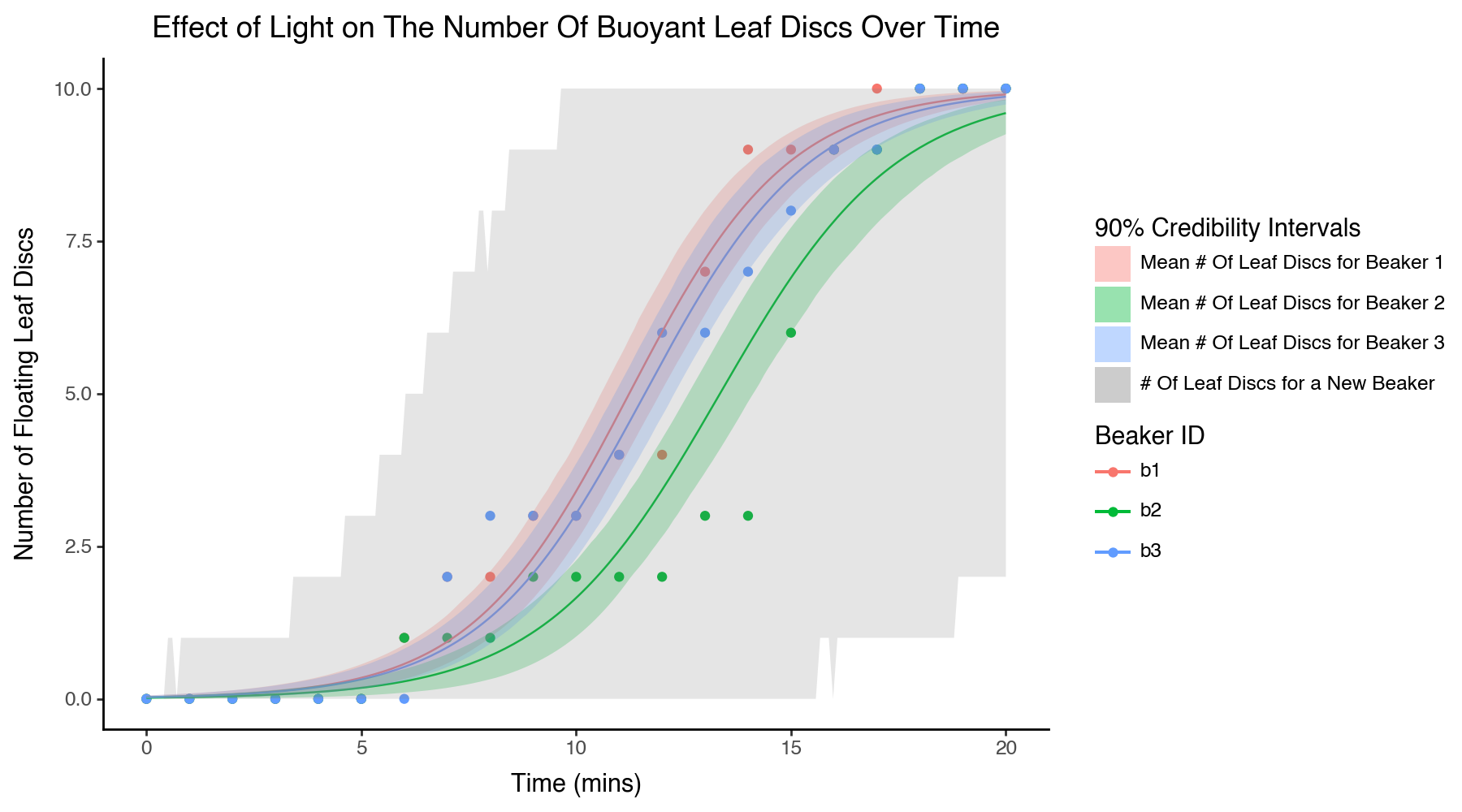

Which produced the following results:

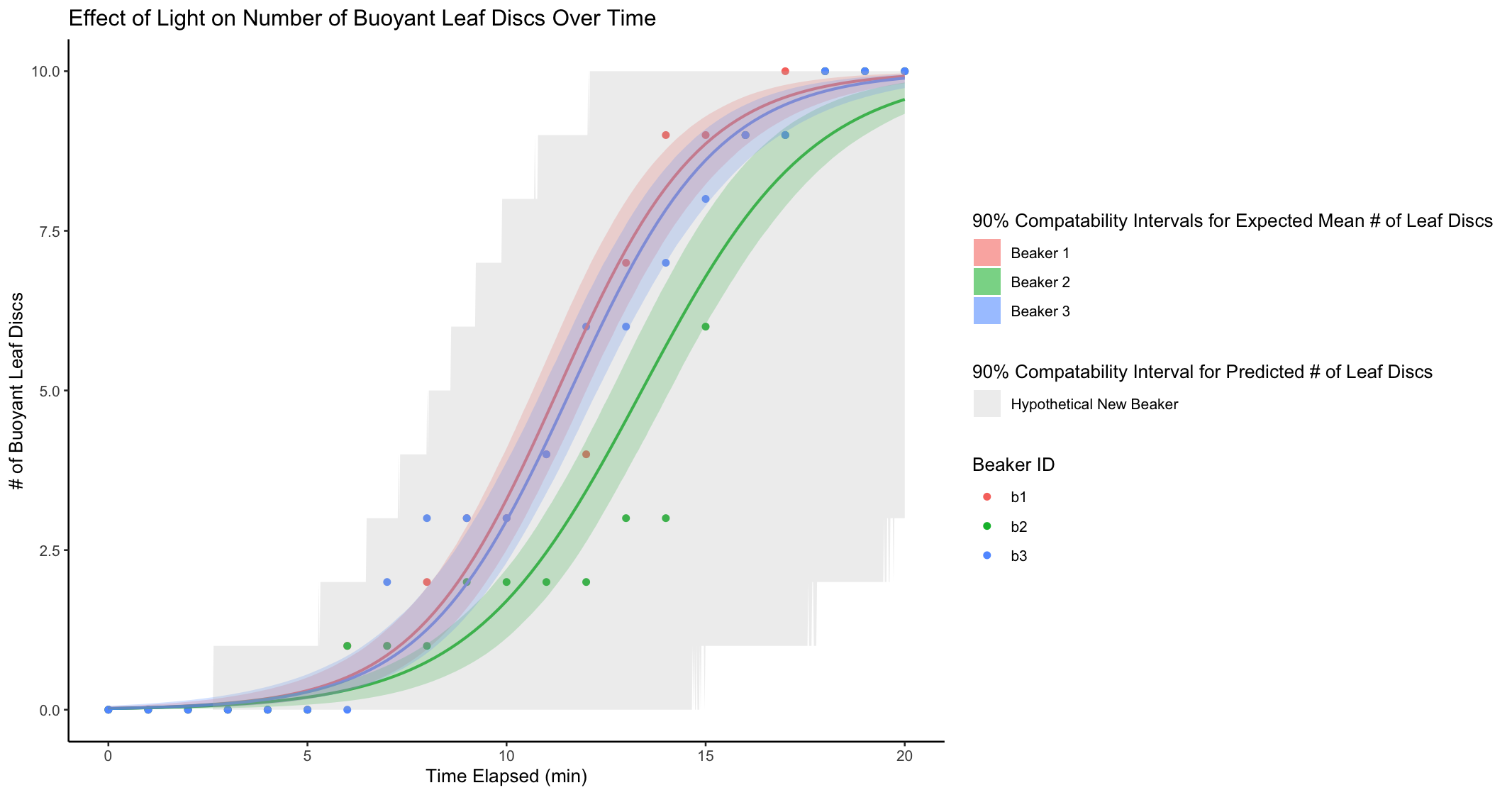

I did think about point 2), but I didn't know enough at the time to really model it properly (a discrete-time survival model).
Redeeming Myself In Bayinx¶
Let's first get the data into Python:
import polars as pl
data = pl.DataFrame({
'time': [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20],
'b1': [0, 0, 0, 0, 0, 0, 1, 2, 2, 3, 3, 4, 4, 7, 9, 9, 9, 10, 10, 10, 10],
'b2': [0, 0, 0, 0, 0, 0, 1, 1, 1, 2, 2, 2, 2, 3, 3, 6, 9, 9, 10, 10, 10],
'b3': [0, 0, 0, 0, 0, 0, 0, 2, 3, 3, 3, 4, 6, 6, 7, 8, 9, 9, 10, 10, 10]
})
Re-implementing My First Attempt¶
Instead of storing all my data into a single array, I'm going to structure my counts and timepoints into separate objects and take advantage of broadcasting to avoid explicit loops:
import bayinx as byx
import bayinx.dists as byd
import bayinx.nodes as byn
from jaxtyping import Scalar, Array
# Define my original model with complete pooling
class BinomialCompletePooling(byx.Model):
alpha: byn.Continuous[Scalar] = byx.define(())
beta: byn.Continuous[Scalar] = byx.define(())
counts: byn.Observed[Array] = byx.define(('n_beakers', 'n_timepoints'), lower = 0)
time: byn.Observed[Array] = byx.define('n_timepoints', lower = 0, upper = 20)
def model(self, target):
# Priors
self.alpha << byd.Normal(0, 100)
self.beta << byd.Normal(0, 100)
# Likelihood
self.counts << byd.Binomial(10, logit_p = self.alpha + self.beta * self.time)
Then we can fit our model and recreate the same plot from before:
import plotnine as gg
import jax.numpy as jnp
import numpy as np
import bayinx.flows as byf
import bayinx.ops as byo
# Construct and fit posterior approximation
post = byx.Posterior(
BinomialCompletePooling,
n_beakers = 3,
n_timepoints = 21,
counts = data.select(pl.exclude('time')).to_jax().T,
time = data.get_column('time').to_jax()
)
post.configure([byf.FullAffine()])
post.fit()
# Compute posterior predictives
time = jnp.linspace(0, 20, 200)
pred_mean = post.predictive(
lambda model, key: byo.sigmoid(model.alpha + model.beta * time) * 10,
int(2e4)
)
pred_new = post.predictive(
lambda model, key: byd.Binomial(10, logit_p = model.alpha + model.beta * time).sample(time.shape, key),
int(2e4)
)
# Format observed data for plotting
plot_data = data.unpivot(
index = 'time',
variable_name = 'beaker_id',
value_name = 'count'
).with_columns(
pl.col('beaker_id')
)
# Format posterior predictives
pred_plot_data = pl.DataFrame({
'time': np.array(time),
'mean_num': np.array((pred_mean).mean(0)),
'mean_num_lb': np.array(jnp.quantile(pred_mean, 0.025, axis = 0)),
'mean_num_ub': np.array(jnp.quantile(pred_mean, 0.975, axis = 0)),
'new_lb': np.array(jnp.quantile(pred_new, 0.025, axis = 0)),
'new_ub': np.array(jnp.quantile(pred_new, 0.975, axis = 0))
})
# Recreate original plot
plot = (
gg.ggplot(plot_data, gg.aes(x = 'time', y = 'count', color = 'beaker_id')) +
gg.geom_point() +
gg.geom_line(
gg.aes(x = 'time', y = 'mean_num'),
pred_plot_data,
inherit_aes = False
) +
gg.geom_ribbon(
gg.aes(x = 'time', ymin = 'mean_num_lb', ymax = 'mean_num_ub', fill = "'Expected Number of Leaf Discs'"),
pred_plot_data,
inherit_aes = False,
size = 0,
alpha = 0.25
) +
gg.geom_ribbon(
gg.aes(x = 'time', ymin = 'new_lb', ymax = 'new_ub', fill = "'Predicted Number of Leaf Discs'"),
pred_plot_data,
inherit_aes = False,
size = 0,
alpha = 0.2
) +
gg.theme_classic() +
gg.labs(
title = 'Effect of Light on The Number Of Buoyant Leaf Discs Over Time',
x = 'Time (mins)',
y = 'Number of Floating Leaf Discs',
color = 'Beaker ID',
fill = '95% Credibility Intervals'
) +
gg.scale_fill_manual(
values = {
'Expected Number of Leaf Discs': 'black',
'Predicted Number of Leaf Discs': 'gray'
}
) +
gg.scale_color_discrete(
labels = {'b1': 'Beaker 1', 'b2': 'Beaker 2', 'b3': 'Beaker 3'}
)
)
plot.save('docs/examples/intro/leaf_discs/images/new_binomial_glm_plot.png', width = 9, height = 5)
Re-implementing My Second Attempt¶
# Define my modified model with partial pooling
class BinomialPartialPooling(byx.Model):
mean_alpha: byn.Continuous[Scalar] = byx.define(())
scale_alpha: byn.Continuous[Scalar] = byx.define((), lower = 0)
mean_beta: byn.Continuous[Scalar] = byx.define(())
scale_beta: byn.Continuous[Scalar] = byx.define((), lower = 0)
alpha: byn.Continuous[Array] = byx.define(('n_beakers', 1))
beta: byn.Continuous[Array] = byx.define(('n_beakers', 1))
counts: byn.Observed[Array] = byx.define(('n_beakers', 'n_timepoints'), lower = 0)
time: byn.Observed[Array] = byx.define('n_timepoints', lower = 0, upper = 20)
def model(self, target):
# Hyperpriors
self.mean_alpha << byd.Normal(0, 100)
self.mean_beta << byd.Normal(0, 100)
self.scale_alpha << byd.Exponential(1)
self.scale_beta << byd.Exponential(1)
# Priors
self.alpha << byd.Normal(self.mean_alpha, self.scale_alpha)
self.beta << byd.Normal(self.mean_beta, self.scale_beta)
# Likelihood
self.counts << byd.Binomial(10, logit_p = self.alpha + self.beta * self.time)
# Construct and fit posterior approximation
post = byx.Posterior(
BinomialPartialPooling,
n_beakers = 3,
n_timepoints = 21,
counts = data.select(pl.exclude('time')).to_jax().T,
time = data.get_column('time').to_jax()
)
post.configure([byf.FullAffine()] + [byf.Sylvester(6)] * 6)
post.fit(learning_rate = 1e-2)
# Compute posterior predictives
time = jnp.linspace(0, 20, 200)
# Posterior predictive of the expected count for each beaker
pred_means = post.predictive(
lambda model, key: byo.sigmoid(model.alpha + model.beta * time) * 10,
int(1e4),
max_batch_size = int(1e3),
sir = True
)
# Posterior predictive of the count for a new beaker
def new_beaker(model: BinomialPartialPooling, key):
# Simulate parameters for a new beaker
new_alpha = byd.Normal(model.mean_alpha, model.scale_alpha).sample((), key)
new_beta = byd.Normal(model.mean_beta, model.scale_beta).sample((), key)
# Simulate new count for each timepoint
counts = byd.Binomial(
10,
logit_p = new_alpha + new_beta * time
).sample(time.shape, key)
return counts
pred_new = post.predictive(
new_beaker,
int(1e5),
max_batch_size = int(1e3),
sir = True
)
# Format observed data for plotting
plot_data = data.unpivot(
index = 'time',
variable_name = 'beaker_id',
value_name = 'count'
).with_columns(
pl.col('beaker_id')
)
# Format posterior predictive for expected count in existing beakers
pred_means_plot_data = (
pl.DataFrame({
'time': np.array(time),
'mean_num': np.array(pred_means.mean(0)).T,
'mean_num_lb': np.array(jnp.quantile(pred_means, 0.05, axis = 0)).T,
'mean_num_ub': np.array(jnp.quantile(pred_means, 0.95, axis = 0)).T
})
.with_columns(
beaker_id = ['b1', 'b2', 'b3']
)
.explode('mean_num', 'mean_num_lb', 'mean_num_ub', 'beaker_id')
)
# Format posterior predictive of the count for a new beaker
pred_new_plot_data = pl.DataFrame({
'time': np.array(time),
'new_num_lb': np.array(jnp.quantile(pred_new, 0.05, axis = 0)),
'new_num_ub': np.array(jnp.quantile(pred_new, 0.95, axis = 0))
})
# Recreate original plot
plot = (
# Plot observed data
gg.ggplot(plot_data, gg.aes(x = 'time', y = 'count', color = 'beaker_id')) +
gg.geom_point() +
# Visualize posterior for existing beakers
gg.geom_line(
gg.aes(x = 'time', y = 'mean_num', color = 'beaker_id', fill = 'beaker_id'),
pred_means_plot_data,
inherit_aes = False
) +
gg.geom_ribbon(
gg.aes(x = 'time', ymin = 'mean_num_lb', ymax = 'mean_num_ub', fill = "beaker_id"),
pred_means_plot_data,
inherit_aes = False,
size = 0,
alpha = 0.25
) +
# Visualize posterior for a new beaker
gg.geom_ribbon(
gg.aes(x = 'time', ymin = 'new_num_lb', ymax = 'new_num_ub', fill = "'new_beaker'"),
pred_new_plot_data,
inherit_aes = False,
size = 0,
alpha = 0.2
) +
gg.theme_classic() +
gg.labs(
title = 'Effect of Light on The Number Of Buoyant Leaf Discs Over Time',
x = 'Time (mins)',
y = 'Number of Floating Leaf Discs',
color = 'Beaker ID',
fill = '90% Credibility Intervals'
) +
gg.scale_fill_manual(
values = {
'b1': '#F8766D',
'b2': '#00BA38',
'b3': '#619CFF',
'new_beaker': 'gray'
},
labels = {
'b1': 'Mean # Of Leaf Discs for Beaker 1',
'b2': 'Mean # Of Leaf Discs for Beaker 2',
'b3': 'Mean # Of Leaf Discs for Beaker 3',
'new_beaker': '# Of Leaf Discs for a New Beaker'
}
)
)
plot.save('docs/examples/intro/leaf_discs/images/new_binomial_glmm_plot.png', width = 9, height = 5)
